Tag: 4:1 Input

For Immediate Release – 30W 2″ x 1″ Railway Series

For Immediate Release

30W 9-36V or 18-75V Input

CPR30 series 2″ x 1″ Railway Series

Londonderry, NH – June 6, 2024 – Semiconductor Circuits, Inc. introduces the Cool Power Technologies 30W 2″ x 1″ DC-DC isolated converter for railway applications. These metal cased potted modules provide 30W of output power yet meet EN 50155/60068 “TX” temperature range – providing full power over the -40C – 70C ambient temperature range. The modules have an industry standard pinout/footprint and interface standards such as enable and trim features. The converters have a wide input voltage range of 9 to 36 VDC or 18 to 75 VDC & provide 3000 VDC input to output isolation as required by railway application specifications.

The Cool Power CPR30 series offers output voltages of 3.3V, 5V, 12V, 15V, 24V and 48V. Additional output voltages are possible – contact us with your needs. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

The CPR30 series meets 50155/60068 temperature requirements, EN45545-2 fire prevention guidelines and Railway EMC requirements of EMC EN50121 -3 -2. The modules meet RoHS III Directive 2015/863/EU and are REACH 1907/2006 – 233 SVHC update compliant. The module complies with all of the standard industry requirements including no minimum load, no minimum capacitive load and 2X nominal input voltage transients.

Other features include: fixed-frequency operation, auto-restart OVP, OCP & OTP protections, UVLO and +/-10% output voltage trim. Remote ON/OFF is standard with positive or negative logic options available.

The modules feature a standard 2 x 1 pinout with dimensions of 2.0” L x 1.0” W (50.8mm x 25.4mm.) It has a height of 0.41″ (10.4mm) which accommodates tight card spacing with minimal airflow blockage of downstream components.

A product brief and technical datasheets are available here & sample quantities can be ordered directly though Digikey by clicking the link below. Please contact sales@dcdc.com or call 603-893-2330 for OEM pricing and availability.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for over 58 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053.  sales@dcdc.com



Up to 75W 4:1 Input 1 x 2 DC-DC Converters

For Immediate Release

Up to 75W 4:1 Input

CP75 series 1 x 2 DC-DC Converters

sci_banner.jpgLondonderry, NH – January 6, 2020 – Semiconductor Circuits, Inc. introduces the “Cool Power Technologies” wide input range 1 x 2 DC-DC converter series. These metal encased potted (or low-profile open frame) modules provide up to 75W of output power – ideal for distributed power architecture applications or as a fully regulated intermediate bus converter. These modules are compliant with the industry standard footprint and interface standards. The converters have a wide input voltage range of 9 to 36 VDC or 18 to 75 VDC & provide 1600 VDC input to output isolation (2000 VDC for the open frame version.)

The Cool Power CP75 series offers output voltages from 3.3V to 48V. We offer additional power levels and output voltages – contact us with our needs. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

The CP75 input series meets RoHS III Directive 2015/863/EU and REACH 1907/2006 – 225 SVHC update compliant. The module complies with all of the standard industry requirements including no minimum load, 2X nominal input voltage transient and pre-biased load startup.

Other features include: fixed-frequency operation, auto-restart OVP, OCP & OTP protections, UVLO and +/-10% output voltage trim. Remote ON/OFF is standard with positive or negative logic options available.

The modules feature a standard 1 x 2 pinout with dimensions of 2.0” L x 1.0” W (50.8mm x 25.4mm.) It has a height of 0.41″ (10.4mm) which accommodates tight card spacing with minimal airflow blockage of downstream components. The converters are also available as an open-frame version which is 1.94″ L x 0.94″ W x 0.33″ Tall.

A product brief and technical datasheets are available here & sample quantities can be ordered directly from stock via the website or though our distributor, by clicking the link below. Please contact sales@dcdc.com or call 603-893-2330 for OEM pricing and availability.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for over 53 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053.  sales@dcdc.com



For Immediate Release – up to 72W 4:1 Input 16th Brick DC-DC Converters

For Immediate Release

Up to 72W 4:1 Input

16th Brick DC-DC Converters

CPT 4:1 SeriesLondonderry, NH – October 10, 2018 – Semiconductor Circuits, Inc. expands the power rating of the “Cool Power Technologies” wide input range 16th brick DC-DC converter series. These open frame (through-hole or SMT) or baseplated modules provide up to 72W of output power @ output voltages of 5.0, and 12Vdc – ideal for distributed power architecture applications or as a fully regulated intermediate bus converter. These modules are compliant with DOSA 16th brick footprint and interface standards. The converters have a wide input voltage range of 18 to 72 VDC (9-36 Vin upon request) & provide 2250 VDC input to output isolation.

The CPT 4:1 series offers output voltages from 3.3V to 48V and input voltage ranges of 9-36Vin or 18-72Vin. Other power levels and output voltages in the 4:1 input series are available upon request. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

The CPT 4:1 input series meets EN 60950 basic insulation requirements and is RoHS III Directive 2015/863/EU and REACH 1907/2006 – 205 SVHC compliant. The module complies with all of the typical industry requirements including no load operation, 2X nominal input voltage transient and pre-biased load startup.

Other features include: fixed-frequency operation, auto-restart OVP, OCP & OTP protections, UVLO, remote sense and +/-10% output voltage trim using industry standard equations. Remote ON/OFF is standard with positive or negative logic options available.

The modules feature a standard 16th brick pinout with dimensions of 1.3” L x 0.9” W (33.02mm x 22.86mm.) They have a maximum height of 0.374″ (9.5mm) which accommodates tight card spacing with minimal airflow blockage of downstream components. Baseplate modules offer a standard 0.500″ inch max. height [12.7mm] for interfacing with heat spreader/chassis surfaces.

A product brief and technical datasheets are available at www.dcdc.com & sample quantities can be ordered directly from stock via the website. Please contact sales@dcdc.com or call 603-893-2330 for OEM pricing and availability.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for over 45 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053. 603-893-2330 or sales@dcdc.com

For Immediate Release – 5V Input Isolated 1×1 DC-DC Converters

Semiconductor Circuits Press Release

For Immediate Release

5V Input Isolated 1×1 DC-DC Converter



CP30 SeriesLondonderry, NH – June 21, 2017 – Semiconductor Circuits, Inc. introduces the new “Cool Power Technologies” 5V input (4.5-9V) 5V, 6A and 3.3V, 6A 30W 1×1 DC-DC converters. These open frame or optional encapsulated modules provide up to 30W of output power @ an output voltage of 3.3V or 5VDC (12V & 15V versions are also available – consult factory.) These modules are ideal for industrial or distributed power architecture applications. These module are compliant with the standard 1×1 & 1×2 pinout and interface standards. It has a wide input voltage range of 4.5 to 9 VDC (3-9 Vin for the 3.3V version) & provides 2250 VDC input to output isolation in open frame configuration, 1600VDC for the encapsulated module.

The 5Vin CP30 series is ROHS 3 Directive 2015/863/EU Compliant, meets UL/EN 60950-1, 2nd edition requirements and is UL94 V-0 flammability rated. The module complies with all of the typical industry requirements including no load operation, 15V input voltage transient and pre-biased load startup.

Other features include: fixed-frequency operation, auto-restart over-voltage, over-current & over-temperature protections, undervoltage lockout and +/-10% output voltage trim. Remote ON/OFF is standard with positive or negative logic options available. Modules can also be ordered without enable pin and trim pin (remove “P” or “N” from model number.)

The modules feature a standard 1×1/1×2 pinout with dimensions of 0.94” L x 0.94” W x 0.35″ Max. Height (23.9mm x 23.9mm x 8.9mm.) The encapsulated versions are standard 1″ x 1″ x 0.4″ Tall (25.4mm x 25.4mm x 10.2mm.)

A technical datasheet is available here & sample quantities can be ordered directly from stock via the website. Please contact sales@dcdc.com or call 603-893-2330 for OEM pricing and availability. Custom input/output voltages in the 5V input series are available upon request. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for 50 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053. 603-893-2330 or sales@dcdc.com





40W 4:1 Input 1×1 DC-DC Converters Available to Ship Now

Semiconductor Circuits Press Release

5V,8A and 12V,3A3 4:1 Input

40W 1×1 DC-DC Converters

CP40 4:1 SeriesLondonderry, NH – October 24, 2016 – Semiconductor Circuits, Inc. expands it’s new line of “Cool Power Technologies” ultra-wide input range 40W 1×1 DC-DC converters. Open frame or encapsulated 40W 1×1 modules are available in 5V @ 8A and 12V @ 3.3A versions. These modules are ideal for industrial, instrumentation, transportation, medical, solar and many other types of applications including distributed power architecture applications. The module is compliant with the standard 1×2 pinout footprint and interface standards. It has an ultra wide input voltage range of 9 – 36 VDC or 18 – 75 VDC & provides 2250 VDC input to output isolation in open frame configuration, 1600VDC in the encapsulated module.

The CP40 4:1 input series is ROHS 3 Directive 2015/863/EU Compliant, meets UL/EN 60950-1 2nd edition requirements and is UL94 V-0 flammability rated. The module complies with all of the typical industry requirements including no load operation, 2X nominal input voltage survival transient and pre-biased load startup.

Other features include: fixed-frequency operation, auto-restart over-voltage, over-current & over-temperature protections, undervoltage lockout and +/-10% output voltage trim. Remote ON/OFF pin is standard with positive or negative logic options available. Modules can also be ordered without enable pin and trim pins (4-pin module.)

The modules feature a standard pinout and the dimensions of the converter are 0.94” L x 0.94” W x 0.35″ Max. Height (23.9mm x 23.9mm x 8.9mm) open frame, and 1″ x 1″ x 0.4″ Tall (25.4mm x 25.4mm x 10.2mm) in the standard encapsulated configuration.

Technical datasheets are available here & sample quantities can be ordered directly from stock via the website. Please contact sales@dcdc.com, use the “Get a Quote” website link or call 1-888-GET-DCDC (1-888-438-3232) toll free for OEM pricing and availability. Custom output voltages in the 4:1 input series are available upon request. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for 50 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053. 1-888-GET-DCDC (1-888-438-3232) or sales@dcdc.com

For Immediate Release – up to 168W Chassis Mount DC-DC Converters

Semiconductor Circuits Press Release

Semiconductor Circuits Chassis Mount Press Release

For Immediate Release

Up to 168W 2:1 or 4:1 Input

Chassis Mount DC-DC Converters

CPC SeriesLondonderry, NH – September 3, 2015 – Semiconductor Circuits, Inc. introduces the new “Cool Power Technologies” Chassis Mount DC-DC converter series.

Industrial applications can present challenges when there is a need to use board mount power (BMP) DC/DC converters. Not all systems have printed circuit boards (PCB) available to mount a thru-hole module. This does not mean however that these applications cannot take advantage of the latest technologies in BMP designs.

Semiconductor Circuits, Inc. a division of Cool Power Technologies has been creating unique customer specific application solutions for over forty years. Our latest innovation addresses this shortcoming in a simple and elegant fashion.

Available with output power from 10 to 168 watts, the new CPC series offers all of the advantages of our popular CPE family of 8th bricks in a low profile chassis mount package while still offering the flexibility of either a 2:1 or ultra-wide 4:1 input voltage range. Input and output connections utilize a convenient barrier strip with rugged screw terminals. The middle terminal is available for either the Output Trim or an Enable option. Four (4) threaded inserts are provided for mounting.

The CPC product briefs are available here & sample quantities can be ordered directly from stock via the website. Please contact sales@dcdc.com or call 1-888-GET-DCDC (1-888-438-3232) toll free for OEM pricing and availability. Other output voltages are available upon request. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for over 45 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053. 1-888-GET-DCDC (1-888-438-3232) or sales@dcdc.com

Flexibility in Design – Semiconductor Circuits CP-B 1×1 Product Series

CP 1×1 Series

Flexibility is a key component of any power solution. An engineer wants to know his supplier can support his evolving needs should the requirements of a new design change during the development process. Semiconductor Circuits Inc. (SCI) is just that supplier and the recently introduced CP___ 1 X 1 modules are just that product.

Formatted with an industry standard footprint and input/output pin configuration this product is available:

• As a standard unit with thru-hole pins
• I/O pins can be reconfigured for SMT applications
• Open frame package is standard
• Also available encapsulated with an optional 6-sided metal case for shielding where harsh environmental protection or EMI is a concern

By selecting this product family from SCI an engineer can rest easy knowing that he has a product that can match his evolving power and packaging requirements.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053. 1-888-GET-DCDC (1-888-438-3232) or sales@dcdc.com

For Immediate Release – up to 100W 2:1 Input 16th Brick DC-DC Converters

For Immediate Release

Up to 100W 2:1 Input

16th Brick DC-DC Converters

CPT 2:1 SeriesLondonderry, NH – July 24, 2015 – Semiconductor Circuits, Inc. expands the power rating of the “Cool Power Technologies” wide input range 16th brick DC-DC converter series. These open frame modules provide up to 100W of output power @ output voltages of 2.5, 3.3, 5.0, and 12Vdc – ideal for distributed power architecture applications or as a fully regulated intermediate bus converter. These modules are compliant with DOSA 16th brick footprint and interface standards. These converters have a wide input voltage range of 18 to 36 or 36 to 75 VDC & provide 2250 VDC input to output isolation.

The CPT 2:1 input series meets EN 60950 basic insulation requirements and is UL94 V-0 flammability rated. The module complies with all of the typical industry requirements including no load operation, 2X nominal input voltage transient and pre-biased load startup.

Other features include: fixed-frequency operation, auto-restart OVP, OCP & OTP protections, UVLO, remote sense and +10%/-20% output voltage trim using industry standard equations. Remote ON/OFF is standard with positive or negative logic options available.

The modules feature a standard 16th brick pinout with dimensions of 1.3” L x 0.9” W (33.02mm x 22.86mm.) They have a maximum height of 0.404″ (10.3mm) which accommodates tight card spacing with minimal airflow blockage of downstream components.

A product brief and technical datasheets are available at www.dcdc.com & sample quantities can be ordered directly from stock via the website. Please contact sales@dcdc.com or call 1-888-GET-DCDC (1-888-438-3232) toll free for OEM pricing and availability. Other output voltages in the 4:1 input series are available upon request. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for over 45 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053. 1-888-GET-DCDC (1-888-438-3232) or sales@dcdc.com

For Immediate Release – up to 24W 4:1 Input 32nd Brick DC-DC Converters

For Immediate Release

Up to 24W 4:1 Input
32nd Brick DC-DC Converters

CPZ 4:1 SeriesLondonderry, NH – October 22, 2013 – Semiconductor Circuits, Inc. introduces the new “Cool Power Technologies” ultra-wide input range 32nd brick DC-DC converter series. These open frame modules provide up to 24W of output power @ output voltages of 1.8, 3.3, 5.0, and 12Vdc – ideal for distributed power architecture applications or as a fully regulated intermediate bus converter. These modules are compliant with DOSA 32nd brick footprint and interface standards. It has a wide input voltage range of 18 to 72 VDC & provides 1500 VDC input to output isolation.

The CPZ 4:1 input series meets EN 60950 basic insulation requirements and is UL94 V-0 flammability rated. The module complies with all of the typical industry requirements including no load operation, 100V/100mS input voltage transient and pre-biased load startup.

Other features include: fixed-frequency operation, auto-restart OVP, OCP & OTP protections, UVLO, remote sense and +/-10% output voltage trim using industry standard equations. Remote ON/OFF is standard with positive or negative logic options available.

The modules feature a standard 32nd brick pinout with dimensions of 0.76” L x 0.92” W (19.3mm x 23.4mm.) It has a maximum height of 0.35″ (8.9mm) which accommodates tight card spacing with minimal airflow blockage of downstream components.

A product brief and technical datasheet is available at www.dcdc.com & sample quantities can be ordered directly from stock via the website. Please contact sales@dcdc.com for OEM pricing and availability. Other output voltages in the 4:1 input series are available upon request. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for over 50 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Tinker Avenue Unit#1 Londonderry NH 03053. sales@dcdc.com

For Immediate Release-66W 3.3V, 20A 4:1 Input 8th Brick DC-DC Converter

For Immediate Release

3.3V, 20A (66W) 4:1 Input High Performance
8th Brick DC-DC Converter

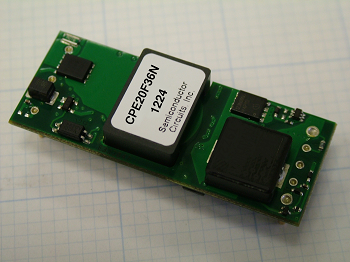

CPE SeriesLondonderry, NH – September 12, 2013 – Semiconductor Circuits, Inc. introduces the CPE20F36 “Cool Power Technologies” 3.3V, 20A ultra-wide input range 8th brick DC-DC converter. This open frame module provides a full 66W of 3.3V power @ 70C & 200lfm of airflow – ideal for distributed power architecture applications or as a fully regulated intermediate bus converter. This module is compliant with DOSA footprint and interface standards. It has a wide input voltage range of 18 to 72VDC & provides 2250VDC input to output isolation.

The CPE20F36 is a high efficiency module with efficiencies exceeding 90% from 60% load through full load. It meets EN 60950 basic insulation requirements and is UL94 V-0 flammability rated. The module complies with all of the typical industry requirements including no load operation, 100V/100mS input voltage transient and pre-biased load startup.

Other features include: fixed-frequency operation, auto-restart OVP, OCP & OTP protections, UVLO, remote sense and +/-10% output voltage trim using industry standard equations. Remote ON/OFF is standard with positive or negative logic options available.

The module features a standard 8th brick pinout and dimensions of 2.3” L x 0.9” W (58.4mm x 22.9mm.) It has a maximum height of 10.3mm (0.404”) which accommodates tight card spacing with minimal airflow blockage of downstream components.

A product brief and technical datasheet is available at www.dcdc.com & sample quantities can be ordered directly from stock via the website. Please contact sales@dcdc.com or OEM pricing and availability. Other output voltages in the 4:1 input series are available upon request. We also welcome quick-turn modifications and custom configurations to meet our customer’s particular requirements.

Semiconductor Circuits, Inc. has been designing and manufacturing AC/DC & DC-DC modules for over 45 years (founded in 1966.) Module applications include: industrial, test, telecom/communications, networking, data-processing, railway, military, medical and aerospace. Please visit our website at www.dcdc.com for more information.

Semiconductor Circuits, Inc., 14 Industrial Way, Atkinson, NH 03811.  sales@dcdc.com
