SC60B Info

SC60B Series: "NEW Low Cost" 60 Watt DC/DC Converter Series (Single & Dual)


The SC60B Series is our new 60 Watt, Ultra Wide Input (9-36Vdc)(18-76Vdc), Open-frame, 1/2 bricks. These dynamic 60 Watt DC to DC converters offer many unique features, such as: Higher ambient operating temperatures, reduced airflow requirements, efficiencies greater than 89% over the entire input voltage range, excellent regulation and transient response characteristics, 1500 Vdc I/O Isolation. RoHS compliant converters available.

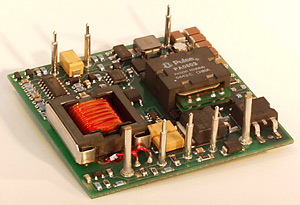

60W Open-frame 1/2 brick with Ultra Wide Input Range

    Catalog, 2 pages
    Technical Reference Notes: (PDF) SC60B14-250-48 (18-76Vdc Input, 24.0Vdc Output)
    Technical Reference Notes: (PDF) SC60B18-330-48 (18-76Vdc Input, 18.0Vdc Output)

    • Model numbers:
    • SC60B13-400-18 (9-36Vdc Input, 15Vdc Output)
    • SC60B18-330-18 (9-36Vdc Input, 18Vdc Output)
    • SC60B14-250-18 (9-36Vdc Input, 24Vdc Output)
    • SC60B22-500-18 (9-36Vdc Input, +/-12Vdc Output)
    • SC60B23-400-18 (9-36Vdc Input, +/-15Vdc Output)
    • SC60B13-400-48 (18-76Vdc Input, 15Vdc Output)
    • SC60B18-330-48 (18-76Vdc Input, 18Vdc Output
    • SC60B14-250-48 (18-76Vdc Input, 24Vdc Output)
    • SC60B22-500-48 (18-76Vdc Input, +/-12Vdc Output)
    • SC60B23-400-48 (18-76Vdc Input, +/- 15Vdc Output)


Applications for the SC60B Series include: telecom mobile/optical switches, network routers and systems requiring isolation. Contact sales@dcdc.com for further information.
